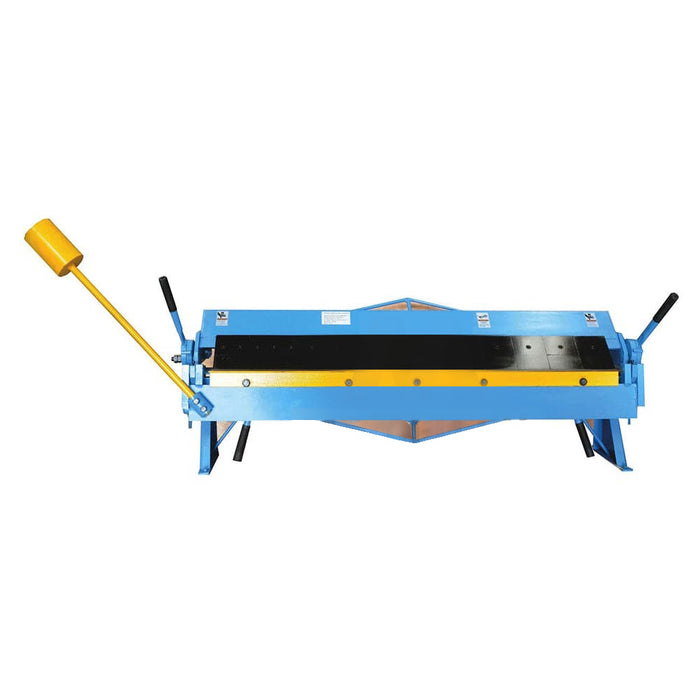

Metaltech MTPB1220 1220mm Deluxe Bench Top Pan Brake
by Metaltech
SKU: MTPB1220
Save 23%
Original price
$1,299.00
Original price
$1,299.00
-
Original price
$1,299.00
Original price
$1,299.00
Current price
$999.00
$999.00
-
$999.00
Current price
$999.00
Features:
- Robust industrial, fabricated steel construction.
- Convenient bench top ergonomic design.
- 16 removable individual forming fingers for bending of pans or boxes.
- Precision machine finished bending bed.
- Material thickness compensated by adjustable clamp blade.
- Distortion prevention is assured by adjustable clamping pressure beam.
- All bearing areas have oiling points.
Applications:
- Large, robust, industrial quality pan brake for manual bending of mild steel sheet metal
Specifications:
- 16 removable forming fingers ,widths - 5 × 51mm , 6 x 76mm and 5 x 101mm.
- Maximum bending thickness capacity -mild steel 1.2mm.
- Maximum material length capacity 1220mm.
- Overall dimensions (L x W x H) 1520 × 320 × 530 mm.
- Weight (nett) 175kg.
